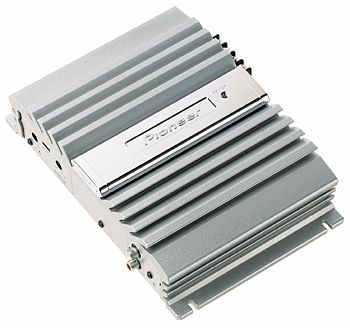

Pioneer Amplifier
GM-232

2 Channel Power Amplifier


Specifications:

• Continuous Power (20Hz-20kHz, 0.08% THD)
• 2 channel: (4 Ohm) 35Wx2
• 2 channel: (2 Ohm) 50Wx2
• 1 channel: (4 Ohm) 80Wx1
• Maximum Power (EIAJ)
• 2 channel: (4 Ohm) 70Wx2
• 1 channel: (4 Ohm) 160Wx1
• Frequency Response: 10Hz - 50kHz (0,-1dB)
• Total Harmonic Distortion: 0.004% (1kHz, 4W )
• Signal-to-Noise Ratio: 103dB (IHF-A Weighted, at 1kHz)
• Dimensions: 8-1/8" x 2" x 6-7/8"

Features:

• Bridgeable 1/2/3 Channel Capability
• PWM MOSFET Power Supply
• Balanced Isolator Input Circuit
• Screw-Type Power/Ground Terminals
• Screw-Type Speaker Terminals
• RCA Inputs
• Hi-Volt Input Level Control (400mV-4.5V)
• Speaker Level Inputs
